Slitting Machine with side arm crosswise unload roll

Slitting Machine with side arm crosswise unload roll, suit to slit BOPP film,LDPE film,HDPE film,PP film,PET film,PVC film.

Contact Us

Inquiry Basket

OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year

Product Details

Slitting Machine with side arm crosswise unload roll

Slitting Machine with side arm crosswise unload roll is suit for slitting and rewinding roll materials such as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and can cut edge, separate and cut material according to different requirements during production.Slitting machine equipe edge positon control and automatic tension controller.

BOPP film paper

BOPP film paper

Feature:

  1. Suit to LDPEfilm,HDPE film,LLDPE film,BOPP film,PP film,PET film,paper,
  2. inveter control slitting machine speed,save power and ECO,save cost
  3. Film width 100mm-1300mm
  4. Edge positon control
  5. Automatic tension controller
  6. Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
  7. Machine with simple design,easy operate
  8. Machine is economic design,suit for new beginer or starters
  9. Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
  10. Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
  11. We are welcomed customers Customized machinesor OEM design.

Main Technical Variables:

Type

KD-F1300LS

Material

PET, BOPP, PE, printing composite

Max. Slitting Speed

10-450m/min

Max.Width of Mother

1300mm

Width of Final Roll

30-1300mm

Material thickness

0.012-0.1mm

Max. Dia. of Mother Roll

Φ700mm

Max. Dia. Of rewinding roll

Φ500mm

Flatness rate

≤0.2mm

Host control

PLC (Siemens brand)

Touch screen controller

10”

Slitting knife

Flat blade 6pcs/Round blade 6pcs

Motor

3PCS Servo motor 4KW

winding shafts

3” Slipping shaft 2pcs

Scrap edge blower

Included

Unwinding shaft

3” air shaft

Powder brake of unwinding

10kgs

Slitting accuracy

±0.5mm

EPC accuracy

±0.5mm

Total power

13kw

Low voltage electrical appliances

Schneider brand

Pneumatic components

AirTAC brand

Bearing

NSK brand

Voltage

380V 50HZ 3PH

Weight of Machine

3300kg

1.Unwinding section

  • Unwinding is pneumatic cone(without axis) ,convenient for single person operation.

Adopting a special conical top form, it does not damage the inner wall of the tube core and is fixed.

2. The unwinding is with automatic constant tension control mode.

3. The unwinding diameter is automatically detected by the proximity switch at the unwinding drive shaft, no need to input material thickness. The residual unwinding diameter can be set to automatically slow down and stop, making it easier to receive the next roll of material.

4. It has a mechanism for manually adjusting the edge of film,adjustment range of ±20mm.

5. The CCD camera automatic correction system, automatically corrects the thin film by following the edges and lines.

2.Winding section

  • Up&Down winding and slitting film roll by independent.
  • With Unilateral unloading.

3 . Up&Down Slipping shaft control by servo motor, and the winding tension is based on the current coil diameter,

  • The PLC automatically controls make film much more flatness.
  • Spiral winding method: makes the tightness of film roll is controllable,according the winding diameter continues to increase,

5. The PLC automatically controls the speed reduction of the winding servo motor, ensuring that the temperature of the slip shaft does not exceed 50 ° C, greatly extending the service life of the slip shaft.

6. The slip pressure and winding motor torque are automatically adjusted simultaneously.

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

China slitting machine

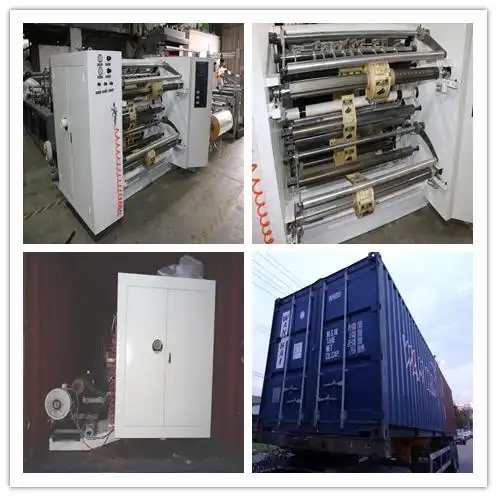

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container withLess Than Container Load（LCL）.

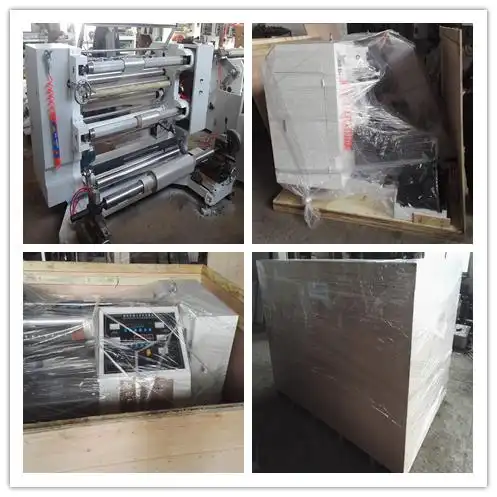

slitting machine in wooden pack

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

shipment of slitting machine

plastic bag machine solution

shipments plastic bag machines



instalment service

install machines in customer factory

plastic bag machine supplier.jpg

plastic bag machine factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

plastic bag machine parts solution

Material supplier

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
