Plastic Bag Machine(Bottom Sealing Machine)

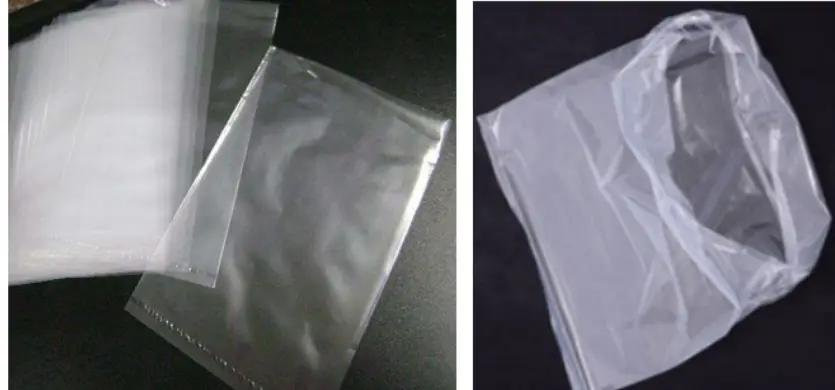

Flat Plastic Bag Machine also called Bottom Sealing Machine,with heat sealing knife and cool cutting knife,suit to produce flat open bag,garbage bag,fruit bag,T-shirt,shopping bag.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
color
red,blue,yellow
Plastic Bag Machine with also called Bottom Sealing & Cutting Machine (double lines ),it is used for producing vest bags and flat-opening bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurately and the error smaller .it adopts advanced computer to adjust length more freely and accurately.
| Model | SHXJ-A600 | SHXJ-A700 | SHXJ-A800 | SHXJ-A1000 | SHXJ-A1200 |
| Max. Bag width | 520mm | 620mm | 720mm | 920mm | 1120 mm |
| Max.Bag length | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
| Cutting thickness | 0.02-0.1mm | 0.02-0.1mm | 0.02-0.1mm | 0.02-0.1mm | 0.02-0.1mm |
| Bag-making Speed | 5-100pc/min | 5-100pc/min | 5-100pc/min | 5-100pc/min | 5-100pc/min |
| Power of motor | 1.1 kw | 1.5 kw | 1.5 kw | 3 | 3 |
| Weight | 700kg | 900kg | 900kg | 1000 g | 1100 g |
| Outline dimension | 3.2*1.2*1.7m | 3.5*1.4 *1.7m | 3.5*1.4*1.7m | 3.8 *1.6* 2.1m | 3.8*1.8 * 2.1m |
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
