PE Hot Shrink Film Blown Film Extrusion
PE Hot Shrink Film Blowing Machine use LLDPE material produce PE Hot Shrink Film,suit to pack water bottle,Coco Cola bottle,beer bottle,pallet.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Shrink Film Blown Film Extrusion
Shrink Film Blown Film Extrusion is simple design,suit for new beginer who look to start the film production business.Blown Film Extrusion will provides a good solution for economic but good quality hot shrink film.Suitable for general packaging products such as pallet pack Coca Cola bottle pack, bottle water pack,toys, sporting goods,printed wrap,food,drink packaging,pallet pack,box pack,stationary and other products pack.
1.The cylinder and the screw of extruder are made of high quality alloy steel that processed by nitrogen treatment..beer package PE shrink film blowing machine
1.The auxiliary machine has a platform which makes operation easy
1.Adopts frequency conversion to adjust speed, design science and reasonable.
1.Used for various PE hot shrink film blowing .
1.Widely used for packing food, medicine,bottle, box, case, pottery, tissue, etc.
Optional Equipments:
1)Auto Loader
2)Air Compressor
3)Up and Down
4)Air Shaft
5)Masterbatch Dosing device
6)Automatic Winder Changer
7) Corona treatment
| Model | SJ-B50 | SJ-B55 | SJ-B60 | SJ-B65-1 |
| Material | LLDPE raw material | |||
| Usage | Hot shrink film | |||
| Die-head | Special structure for hot shrink film | |||
| Diameter of screw | φ50 | φ55 | φ60 | φ65 |
| Reduced diameter of film | 100-600 mm | 200-800 mm | 300-1000 mm | 400-1200 mm |
| One side film Thickness | 0.015-0.10 mm | |||
| Max.capacity (Kg/h) | 35 | 50 | 60 | 80 |
| Ratio of Screw L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Screw material | 38CrMoAl | 38CrMoAl | 38CrMoAl | 38CrMoAl |
| Power of main motor | 11kw | 15kw | 18.5kw | 22kw |
| Power of Traction | 1.1 kw | 1.1 kw | 1.5 kw | 1.5 kw |
| Heating Power | 11kw | 13kw | 19kw | 21kw |
| Machine size | 4.8×1.9×3.8m | 5.5×2.1×4.6m | 6.5×2.3×5.2m | 6.5×2.5×5.2m |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
| Winder structure | Double Side Winder(Back to back winder) | |||
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | |||
| Delivery time | 30-40days | |||
| Material Core Diameter | 76mm(3 inch) | |||
| Machine Working Time | 24 hours * 7 days | |||
| Warranty | 1 year | |||
| Optional Devices | Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder | |||
| Technical Assistance | Engineers available to service machinery overseas | |||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier

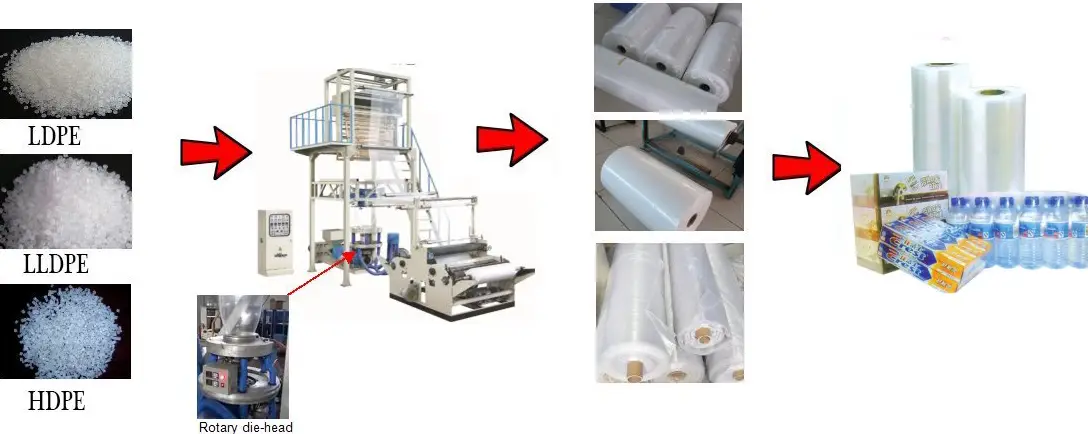

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
