One Layer Stretch Film Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
One Layer Stretch Film Machine
one layer stretch film wrapping machine with following features: one screw, one motor,one inverter,simple design,easy operation,low noise, stable running, especially winding part is controlled by PLC touch screen. The machine is equipped with extruder, traction part, leveling part, edge trimming, winding and finished roll automatic changing etc.
The one layer stretch film wrapping machine is designed for efficient and effective packaging, making it ideal for various industries.

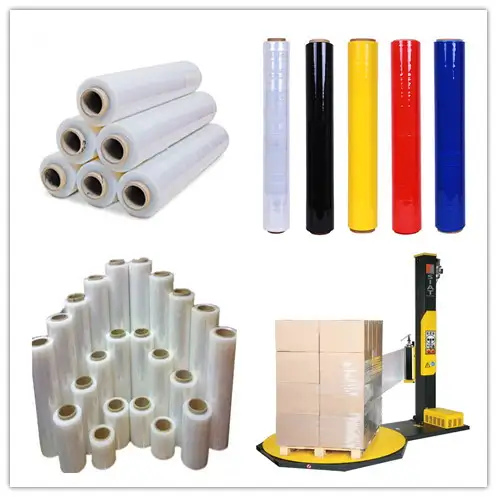

Stretch film wrapping machine also called Cast stretch film machine, machine use LDPE and LLDPE to produce stretch film, which widely used for pack airport luggage packing, pallet packing, carton packing, building material packing, auto parts packing, hardware parts packing etc.
Feature:
- LLDPE,LDPE virgin raw material, recycled material, CaCO3 compound, biodegradable material, masterbatch and additives materia
- inveter control film extruder speed,save power,ECOand save cost.
- Film thickness 0.017mm-0.04mm
- Film width 100mm-500mm
- Film suit for Stretch film,pallet packing,carton packing,building material packing,auto parts packing,hardware packing,luggage wrap packing,
- Screw material is 38CrMoAl,can use long time
- Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
- Machine with simple design,easy operate
- Machine is economic design,suit for new beginer or starters
- Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
- Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
- We are welcomed customers Customized machinesor OEM design.
Optional Equipment:
1)Auto load
2)Auto dry hopper
3)Motorize net changer
4)Hydraulic net changer
5)gule pump
6.air compressor
7.Chiller
8.Waste film crush online
Main Technical Parameter
| Model | KD-50 | KD-75 |
| Material | LLDPE,LDPE,biodegradable material | |
| Screw Diameter | Φ50mm | Φ75mm |
| Film Layer | One layer | One layer |
| L/D Ratio Of Screw | 30:1 | 30:1 |
| Speed of Screw | 10-120rpm | 10-120rpm |
| Film Width | 200-500mm | 200-1000mm |
| Film Thickness | 0.017-0.04mm | 0.017-0.04mm |
| Main Motor Power | 11kw | 30kw |
| Film Color | Transparent,Black,Red,White,blue…bag color changed by mastbatch | |
| Max Output | 35kg | 80kg |
| Heating power | 15KW | 40KW |
| Water Consumption | 0.5m3/h | 0.5m3/h |
| Air Comsumption | 3m3/h | 3m3/h |
| Machine Weight | 3T | 4T |
| Overall Dimensions(L*W*H) | 56*15*18cm | 60*15*25cm |
| Total Power | 40kw | 80kw |
| Power Voltage | 220V,380V,440V | 220V,380V,440V |
| Machine Working time | 24 hours*7 | 24 hours*7 |
| Material Core Diamater | 76mm(3 inch) | 76mm(3 inch) |
| Warranty | 1 year | 1 year |
| Technical Assistance | Engineers available to service machinery overseas | |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Shipment

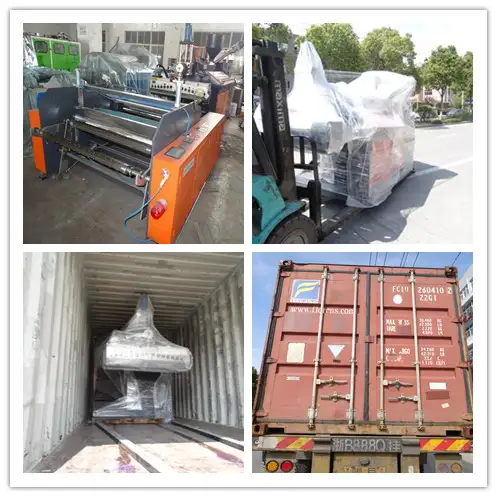

shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

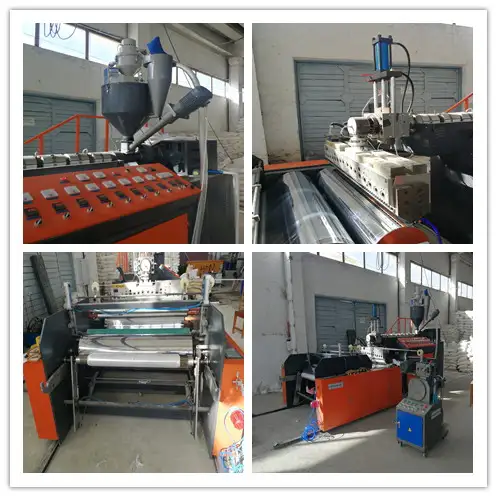

instalment service

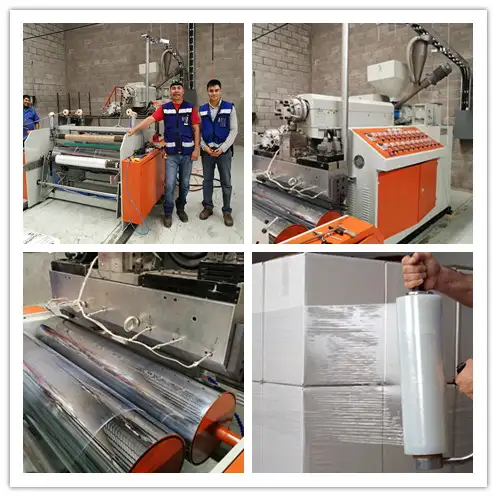

install machines in Mexico customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Stretch film machine.
Extrusion Film Extrusion use Polyethelene.
Linear Low Density Polyethylene(LLDPE):
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
