Four Colors Flexo Printing Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
color
red,blue,yellow

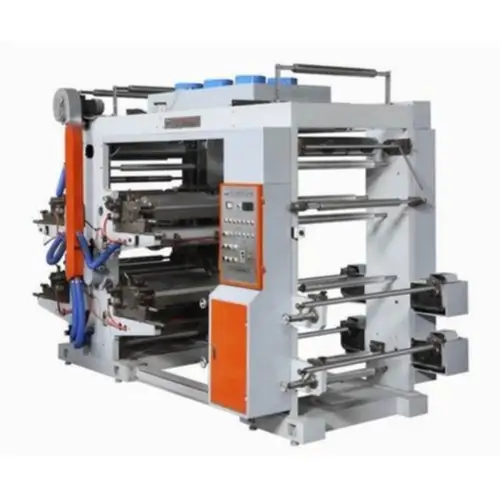

Four Colors Flexo Printing Machine
This machine is suitable for printing such packing materials as polyethylene,polyethylene plastic bag,glass paper and roll paper etc.And it is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.
Material :LDPE film,HDPE film,BOPP film,Paper,PET film,hot shrink film
Performance:
- Easy operation,flexible starting,accurate color register.
- the meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
- Pneumatic printing cylinder lift and lower, is will stir the printing ink automatically after lifting .
- the printing ink is spread by the anilox cylinder with even ink color.
- Reliable drying system coordinated with high-speed rotation, it will automatically break circuit whenthe machine stops.
- 360°continuous and adjustable longitudinal register device.
- The frequency control of motor speed adapts to different printing speeds.
- There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
| Model of Machine | YT-4600 | YT-4800 | YT-41000 |
| Color | Four color | Four color | Four color |
| Max.Width of Printing Material | 600mm | 800mm | 1000mm |
| Max.Printing Width | 560mm | 760mm | 960mm |
| Length Range of Printed Product | 191-914mm | 191-914mm | 191-914mm |
| Max.Diameter of Roll Material | 450mm | 450mm | 450mm |
| Printing Speed | 5-50m/min | 5-50m/min | 5-50m/min |
| Thickness of plate(Including Two-sides Glue Paper) | 2.38mm | 2.38mm | 2.38mm |
| Total Power | 11kw | 13kw | 15kw |
| Weight of Machine | 3000kg | 3500kg | 4000kg |
| Overall Dimensions(m) | 4200*1600*2400mm | 4200*1800*2400mm | 4200*2000*2400mm |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
